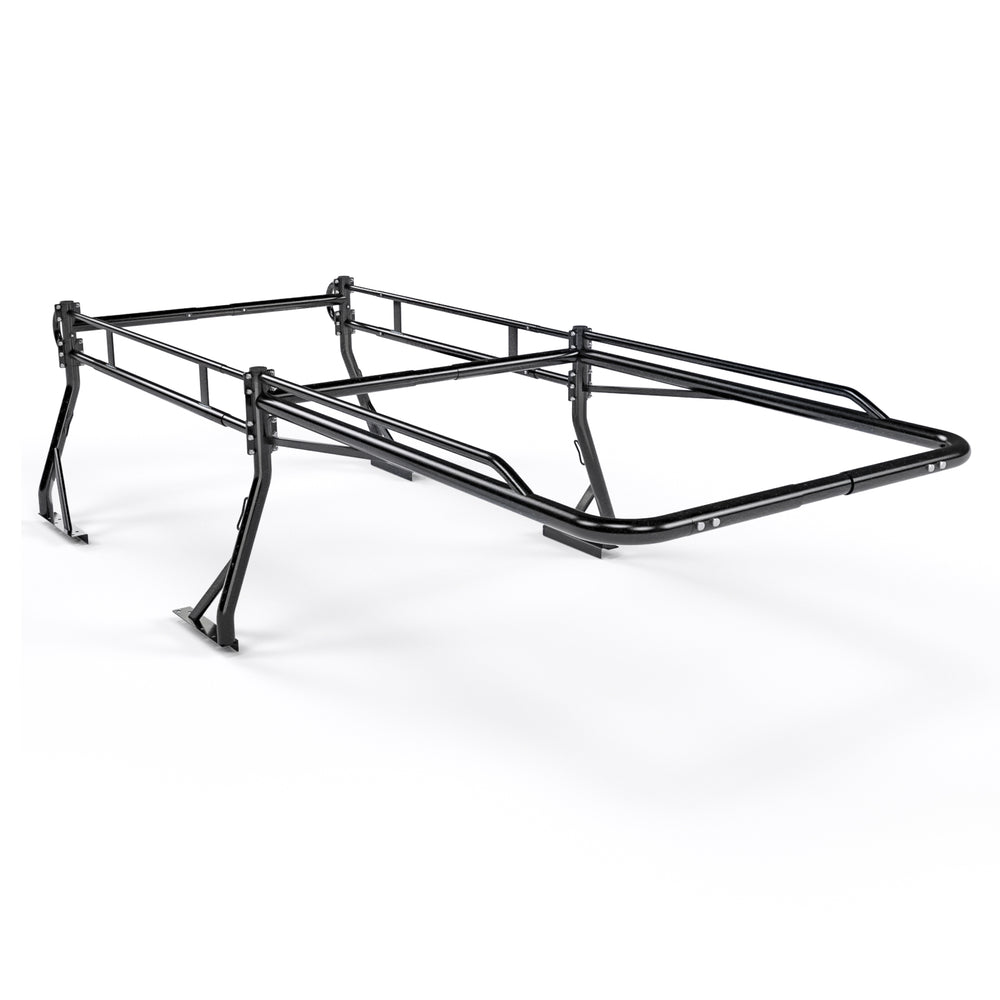

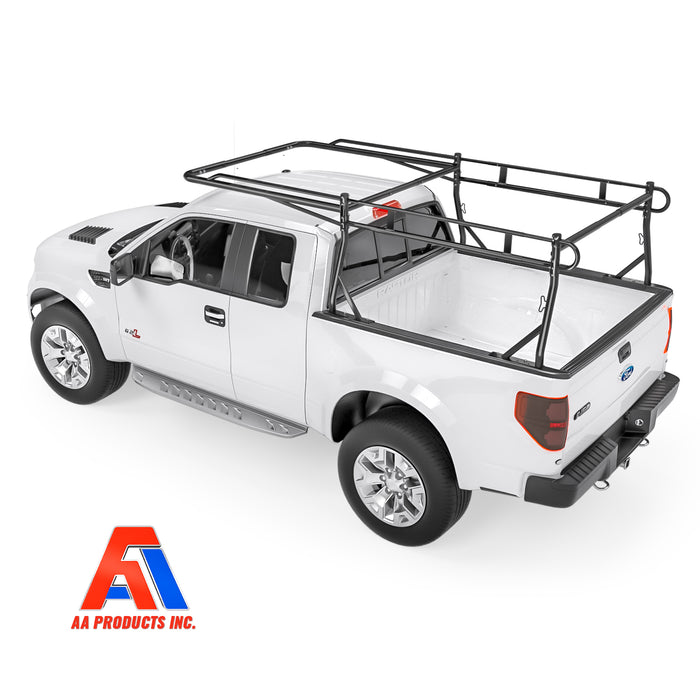

AA-Racks Heavy Duty Pickup Truck Ladder Rack 1000Lbs with 55'' Long Cab Ext Lumber Contractor - Black/ White (X39-LC)

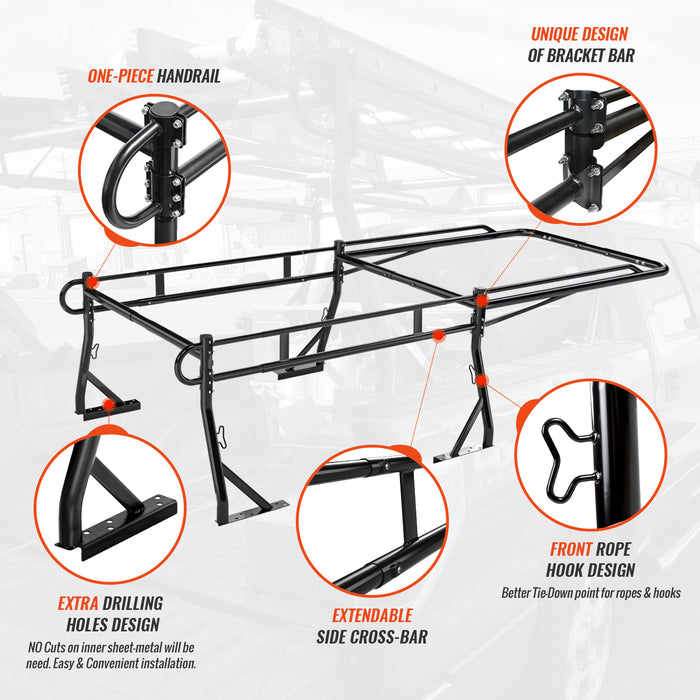

- Each Bracket Joints connect with Four/Six bolts that built upon the X-35 bars which Reinforced the bars rather than weakening them.

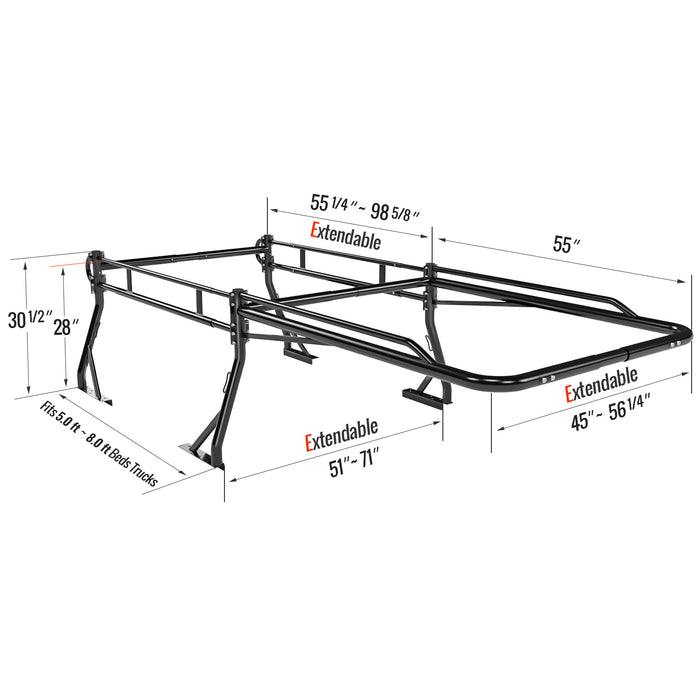

- Over Cab. Extension: 55''; Over Cab. Extension width adjustable: 45''~56.3''.Side Bar Extension:53.5''~90''; Fits 5'~8' bed
- The extension top bars fit all the full size or semi truck beds. Top Bar Extension Min. 51''~ Max. 71'' Product Height: 30.5'' to the top, 26'' to the top cross bar.
- The unit has been weight-tested of 1000lb+ loads.Powder Coated Matte Black and Matte White Paint
- This product requires DRILLING HOLES on your truck.
The upright plate is a flat "L" shape base which has three drilling holes for flexible installation, and you only pick two that fits your truck; and yes, we provide all bolts and nuts in the hardware package for installation.
- Some tool boxes, camper shells & Tonneau covers will affect the installation of this unit;
- Bed rail top made of fiberglass instead of metal for some rare truck models like F-150 super-cab, customers complain it not sturdy for heavy-duty purpose after making holes;
- There are track system installed on the inner bed-wall like the New Toyota Models which blocked our mounting plates;
- Bed width is too small for the minimum extension of 51''.
