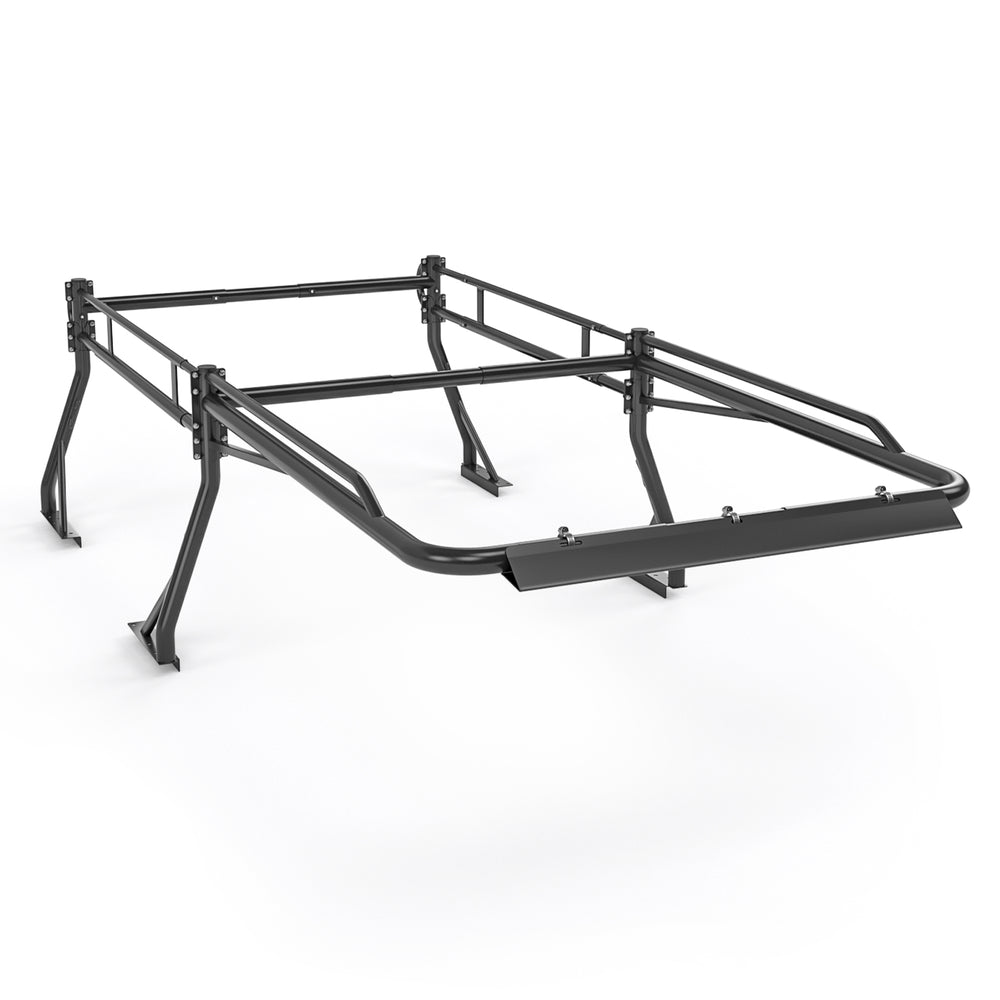

AA-Racks Model X39 Short Bed Truck Ladder Rack Side Bar with Long Cab Ext, Aerodynamic Design with Front Wind Deflector Reduce Wind Noise(X39-LC-WD)

Sale Free Shipping
Original price $ 599.99
Current price $ 488.90
SKU X39-LC-WD

Return policy: Eligible for Return, Refund or Replacement within 30 days of receipt (See details.)

Secured and trusted checkout with:

Master Card Visa American Express PayPal Affirm

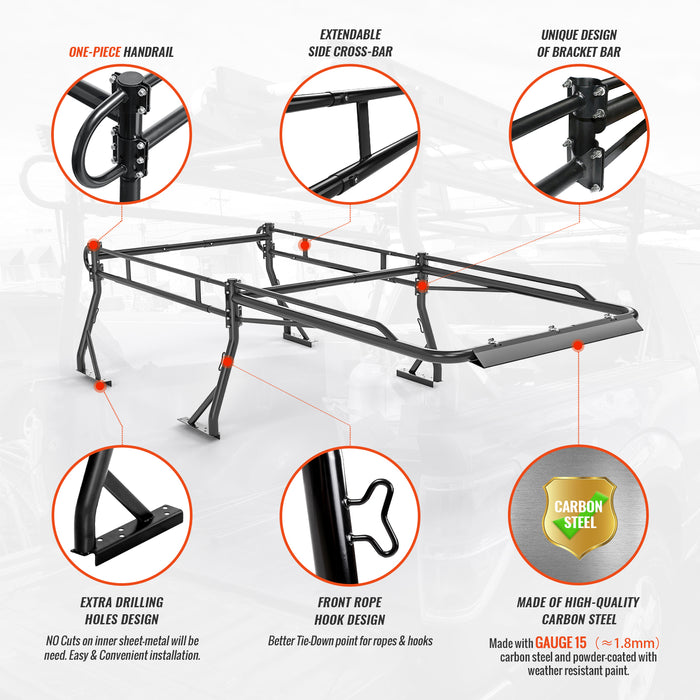

Our unique design of Bracket Bar are built to strengthen the existing basic truck rack style. Each two of the Bracket Bar are jointed with 6 / 4 Grade 8 Carriage Bolts; adding a total of TEN Carriage Bolts built on each upright poles.

The package also comes with Two of the One-Piece Handrail, which provides the “Grab and Hop” convenience of getting on the truck bed. The middle of two side bars increase two welded steel plates to enhance brace to even load distribution. And the air spoiler is effective to reduce wind noise.

It features the extendable top cross-bar which can be adjusted for different sizes bed width. The adjustable range covers inner bed width from Min. 51'' Max.71''. The height is 30.5'' to the clearance and 28'' to the cross bar. Fits 5.0'~8.0' bed

Both the Over-cab Extension Bar & Side Bars are Adjustable in length; offering a wide range of fitment (Width & Length) for different Trucks Models.Side Bar Extension Length Adjustable:53.5''~90'';Over Cab. Extension Width Adjustable: 45''~56.3'';Over-Cab Extension Length: 55 inch

Powder-coated with weather resistant paint. This is the combination of the basic model X35, the Adjustable side bars + Long-over Cab & the Removable wind deflector. The unit has been weight-tested of 1000lb+ loads. This product requires DRILLING HOLES on your truck.



This unit bolts on the rail of your bed, it fits most trucks as long as you don't mind doing bolting. Again, Bolting means DRILLING HOLES on your truck, please STOP proceeding if you don't intend to make holes on your car.

The removable air spoiler is an upgrade option for Model X39 Series truck rack, which can be mounted on the front position of the Over-cab extension bar with 3-ring stainless steel clamp.

The upright plate is a flat "L" shape base which has three drilling holes for flexible installation, and you only pick two that fits your truck; and yes, we provide all bolts and nuts in the hardware package for installation.

The extension top bars fit all the full size or semi truck beds. Top Bar Extension: Min: 41" Max: 61" Product Height: 30.5" to the top, 28" to the top cross bar.



As of now, some compatibility concerns are:

  1. Some tool boxes, camper shells & tonneau covers will affect the installation of this unit;
  2. Bed rail top made of fiberglass instead of metal for some rare truck models like F-150 super-cab, customers complain it not sturdy for heavy-duty purpose after making holes;
  3. There are track system installed on the inner bed-wall like the New Toyota Models which blocked our mounting plates;
  4. Bed width is too small for the minimum extension of 51''.
