AA-Racks Model X31 Truck Bed Ladder Racks for Pickups with 30'' Side Bar Over Cab Ext. Lumber Utility Pipe Racks - Matte Black(2 Packages)

Call to Inquire
Original price $ 479.95
Current price $ 389.90

Return policy: Eligible for Return, Refund or Replacement within 30 days of receipt (See details.)

Secured and trusted checkout with:

Master Card Visa American Express PayPal Affirm

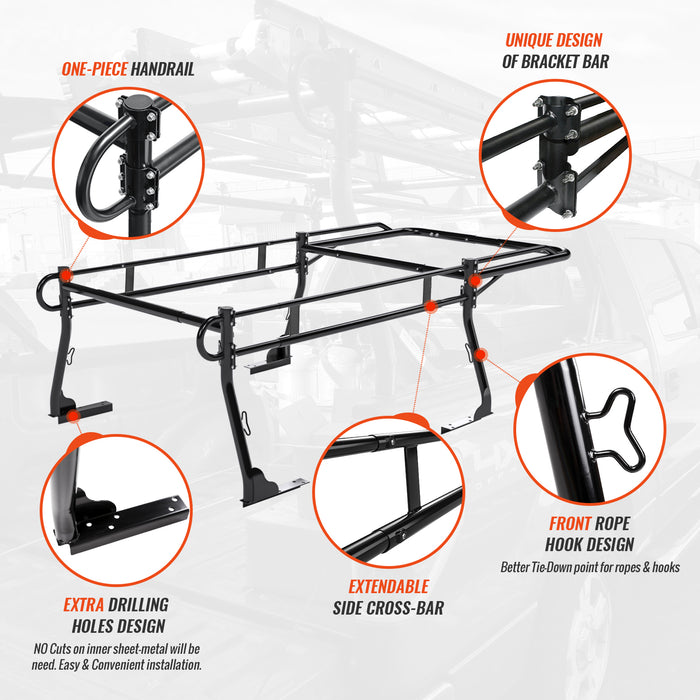

Our unique design of Bracket Bar are built to strengthen the existing basic truck rack style. Each two of the Bracket Bar are jointed with 6 / 4 Grade 8 Carriage Bolts; adding a total of TEN Carriage Bolts built on each upright poles.
The package also comes with Two of the One-Piece Handrail, which provides the “Grab and Hop” convenience of getting on the truck bed.

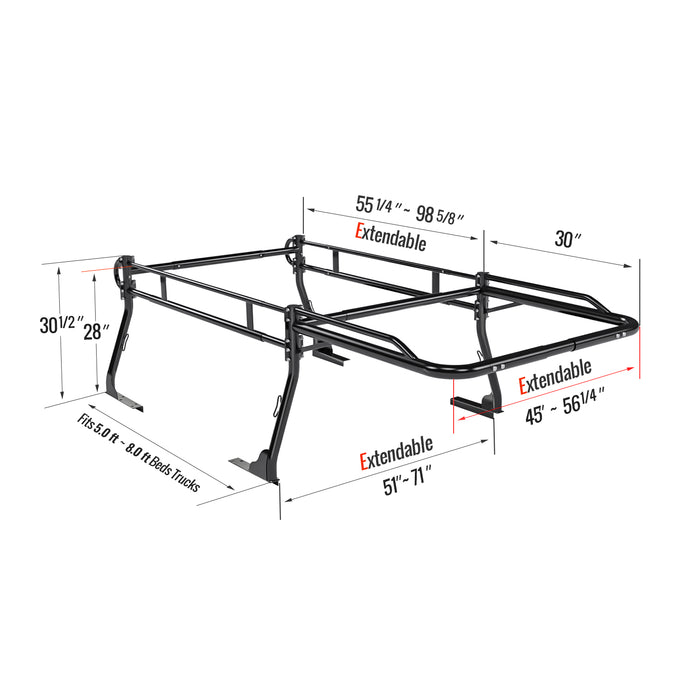

It features the extendable top cross-bar which can be adjusted for different sizes bed width. The adjustable range of inner bed width is 51.5''~71''. The height is 30.5'' to the clearance and 28'' to the cross bar.Fits 5.0'~8.0' bed
Both the Over-cab Extension Bar & Side Bars are Adjustable in length; Side Bar Extension Length Adjustable:53.5''~90'';Over Cab. Extension Width Adjustable: 45''~56.3'';Over-Cab Extension Length: 30 inch
This truck ladder rack is powder-coated with weather resistant paint,

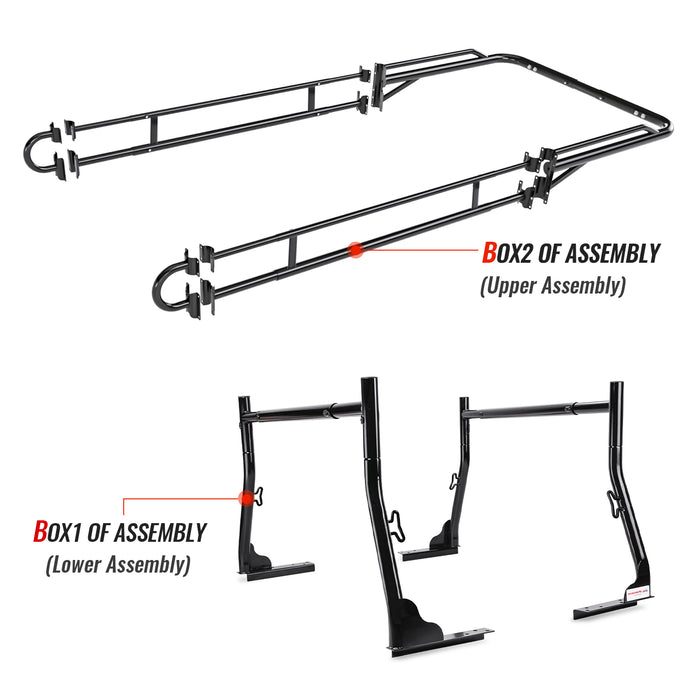

Please note: This product is shipped by two packages.

This unit bolts on the rail of your bed, it fits most trucks as long as you don't mind doing bolting. Again, Bolting means DRILLING HOLES on your truck, please STOP proceeding if you don't intend to make holes on your car.

The P39-MC/RC Series are optional upgrade kit for X39 Series truck rack.

1.P39-MC:This upgrade is single middle cross-bar set add-on for the X39 Series. Increase the number of P39-MC can further reinforces the rack structure.

2.P39-RC:This upgrade is essentially a removable rear bar set for the X39 Series.

The extension top bars fit almost all truck beds. Top Bar Extension: Min: 41" Max: 61" Product Height: 30.5" to the top, 28" to the top cross bar.

The upright plate is a flat L-shape base which has FIVE drilling holes for flexible installation and you only pick two that fits your truck; and yes, we provide all bolts and nuts in the hardware package for installation.

As of now, some compatibilities cases we have heard are:

  1. Camper shells & Tonneau covers will affect the installation of this unit;
  1. Bed rail top made of fiberglass instead of metal for some rare truck models like F-150 super-cab, customers complaint it not sturdy for heavy-duty purpose after making holes;
  1. There are track system installed on the inner bed-wall like the New Toyota Models which blocked our mounting plates;
  1. Bed width is too small for the minimum extension of 51.5".

The products is weight-tested as shown in the pictures.
