AA-Racks Model HX-502 Extendable Steel Removable Pickup Truck Headache Rack with Protective Set, Sandy Black (HX-502-BLK)

$ 189.90

Return policy: Eligible for Return, Refund or Replacement within 30 days of receipt (See details.)

Secured and trusted checkout with:

Master Card Visa American Express PayPal Affirm

Mesh window guard with Cab access opening. Protect the Pickup Cab window while transporting cargo in the truck bed. Designed sturdily to help avoid scratches and dents to your pickup cab back window.

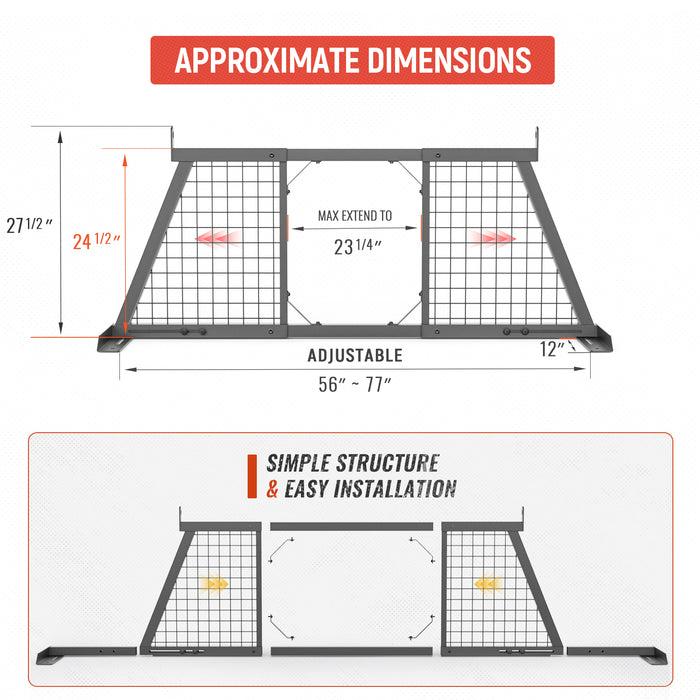

Adjustable design headache rack to fit a variety of full-size truck beds with stake pockets. Its adjustable width spans from 56" to 77".

Grade steel tube construction with a baking paint finish. Split assemble truck bed rack, compact design allows it to be removed and transported anywhere easily.

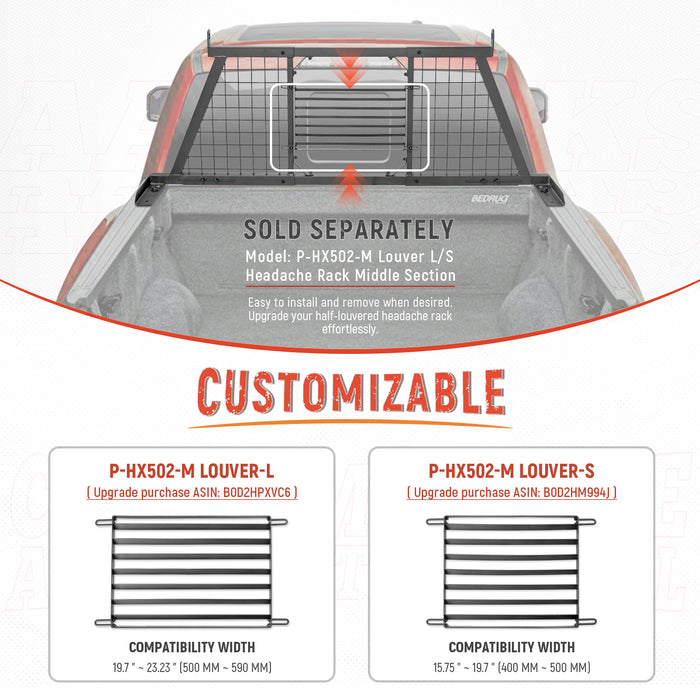

This truck back rack has two optional upgrade accessories that allow it to be adapted to vehicles of different widths. P-HX502-M Louver-L Compatibility width is 19" - 23.23". P-HX502-M Louver-S Compatibility width is 15.75" - 19.7".

The direct bolt-on, c-clamp mounting & stake pocket mounting are the available installation options to select as desired.


The P-HX-502-M Louver Series are optional upgrade kit for HX-502 Series truck rack.

1. P-HX502-M Louver-S: This upgrade is single removable middle screen protective set for the HX-502 Series.

2. P-HX502-M Louver-L: This upgrade is essentially a removable middle louver protective set for the HX-502 Series.

Model HX502 Headache Rack is Cab. Protection Design for pick-up trucks, which can be adjusted from 56" to 77" and Minimum 40" to fit most pick-up trucks.

This back rack allow for complete protection on both sides of the back window glass.

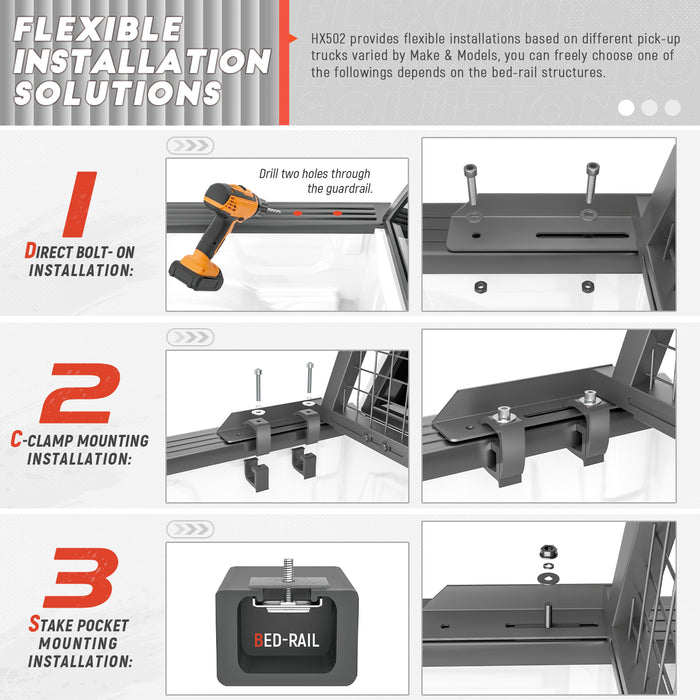

The ladder rack provides flexible installations based on different pick-up trucks varied by Make & Models, customers can freely choose one of the followings depends on the bed-rail structures, feel free to consult us if you need any assistances.

1. Direct Bolt-on Installation: Proper uses of Tools are required for installation.

2. C-Clamp Mounting Installation: The C-Clamps installation might be limited due to different bed-rail structures varied from different Make & Models, cutting of bed-liners might be required for C-clamp Mounting installation.

3. Stake Pocket Mounting Installation: Only work for pick-up trucks come with Stake Pockets on the bed-rail, this option might not be available for certain Make & Models even if it comes with stake pockets on the bed-rail.
